The 535 is a 1/4 DIN single loop process controller (SLC) designed to control any analog process variable (temperature, pressure, flow, level, etc.) in batch and continuous processes. The 535’s outstanding feature mix enables it to bring processes under control faster, more accurately and easily than competitive SLC’s, PLC, and PC based control systems.

The 535 is widely considered to be a best-in-class instrument due to three fundamental strengths.

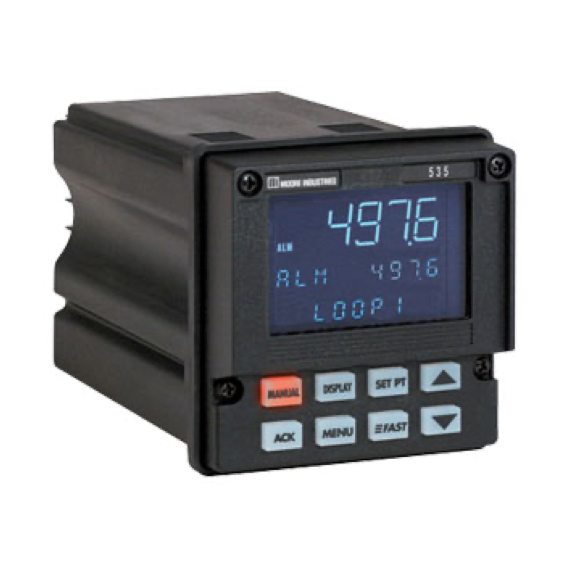

Moore Industries 535 1/4 DIN Process Controller

Specs

Input
Two, Universal
Output
One 4-20mA, Two Relays
Power
90-250Vac
Options
None
Input Description
Programmable dual input, RTD, T/C, mV, Current or Voltage
Output Description
One analog output, two mechanical relay outputs
Power Description
Universal AC, 90 to 250Vac
Options Description
None
Housing Description
1/4 DIN Panel Mount
Primary Function of Controller
Single Loop P, PI, or PID Control, Single Loop, On/Off Control, Single Loop / Dual output for Staged or Duplex Control
Output Slot 1 - Control Output Type
Analog (Milliamp)
Output Slot 2 - Control Alarm Retransmission or Loop Power
Mechanical Relay (5 Amp)
Output Slot 4 - Alarm Retransmission or Loop Power
None
Options
None
RoHS Compliant
Yes

Features

  • Rugged construction: NEMA 4x front panel, thick damage resistant keys, EMI/RFI resistance, input/output isolation
  • Operator interface: 3 line vaccum flourescent display, english prompts/messages, key color state indication
  • Tuning & control algorithms: Powertune - adaptive tuning, pretuning, powerback anti overshoot; 8 stored PID sets, multiple output algorithms
