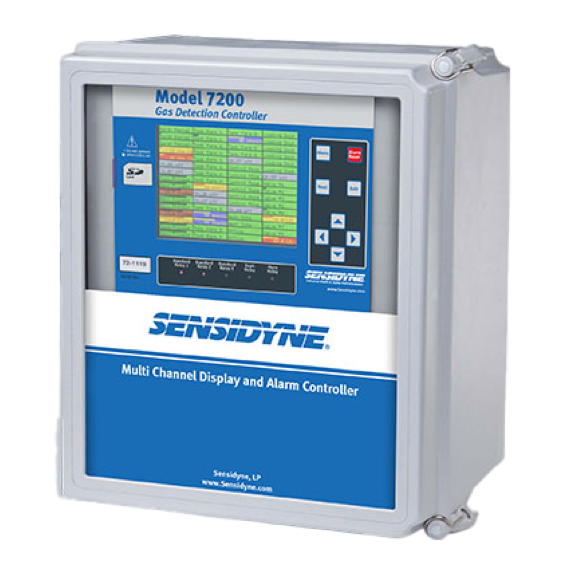

The Model 7200 is a highly capable, user-friendly controller ideal for centralizing display and alarm functions in critical multipoint monitoring applications.

It features a large color LCD display, non-intrusive operation, data logging, and numerous communication options including wireless. The controller provides simultaneous display and alarm functions for up to 64 input channels. Display modes and I/O modules are arranged in groups of 16 for expandability in configurations from 16 up to 64 channels. The Model 7200 controller is available in four enclosures to meet the requirements of a range of application requirements.

Features

  • Large color screen for display of trends, bar graphs, and engineering units with color indication for Faults and Alarm
  • Accepts up to 64 Analog, bridge sensor, ModBus RTU, ModBus TCP, and wireless inputs
  • Ethernet with Modbus TCP Master/Slave
  • Available wireless interface with Modbus
  • Discrete, configurable alarms with grouping, voting, and acknowledgement functions
  • Five standard SPDT 5-amp common alarm relays including Horn and Fault
  • Password protected lockout protects configuration variables during general use
  • One-year datalogging onto SD memory card recording minimum, maximum, and average values for up to one year
  • Magnetic keypad for non-intrusive interface in potentially hazardous locations
  • Webserver for remote configuration, interface, and monitoring
