Unmatched in Performance - the portable liquid flow meter for any purpose.
The FLEXIM FLUXUS F601 is the portable clamp-on flow meter of choice for servicing and maintenance activities, the control and auditing of measurement points not covered by permanent meters, or even the temporary replacement of permanently installed flow meters.

The flow meter is measurement-ready in less than 5 minutes, including the measurement of the pipe wall thickness, the connection of the transducers to the transmitter, the setup of the flow meter, and finally the mounting of the transducers. Though featuring an ergonomic design, which offers simple handling and maximum ease of use, the F601 meter was designed to easily withstand rough industrial environments. Besides its sturdy housing, it features stable and precise latching transducer connectors and stainless steel armored cables to prevent damage during daily work.

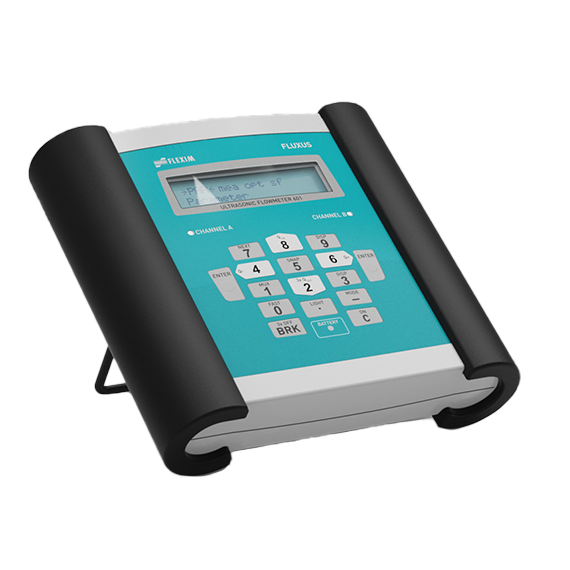

FLUXUS® F601 Industrial Portable Flow Meter

Specs

Measurement uncertainty of the measuring system (volumetric flow rate)
±1% of reading ±0.02 ft/s
Repeatability
0.15% of reading ±0.02 ft/s
Flow velocity range
0.03 - 82 ft/s
Ex zone transmitter
Only safe area
Power supply
Li-ION 7.2V/6.2Ah Operating time >25h
Available transducers
Shear wave
For pipe sizes range
0.24 inch to 255.9 inch
For temperature range
-40°F to +392°F / WI: -328°F to +1112°F
Outputs
4-20mA active/passive, pulse/frequency/binary
Inputs
Pt100/Pt1000, 4-20mA passive
Digital communication
Modbus RTU

Features

  • Ergonomic, lightweight design and simple handling - reliable results in less than 5 minutes
  • Rugged for its usage in rough industrial environments - with two flow channels as standard
  • Fast measurement: No zero point calibration necessary thanks to Plug & Play transducer recognition (EPROM)
  • Maximum flexibility for a broad application range with only two pairs of transducers
  • Bi-directional measurement for nearly all pipe materials and nearly all liquid media - huge internal database
  • Ideal solution also for thermal energy / BTU metering
  • Accurate and reliable measurement even under difficult flow conditions due to the new HybridTrek mode
  • High degree of flexibility, e.g. for energy metering, data logging, various In-/Outputs, recording of ext. pressure data
