ECT DIN signal isolators, converters, splitters, repeaters, and boosters feature solid metal housings that stand up to the continuous, daily rigors of process control and factory automation applications.



Rugged and reliable, the ECT is available in 2-wire Output Loop powered model in a narrow 15mm housing, 2-wire Input-Loop powered model, and 4-wire (line/mains) powered models. The complete family delivers economical solutions for an expansive range of signal interface applications.

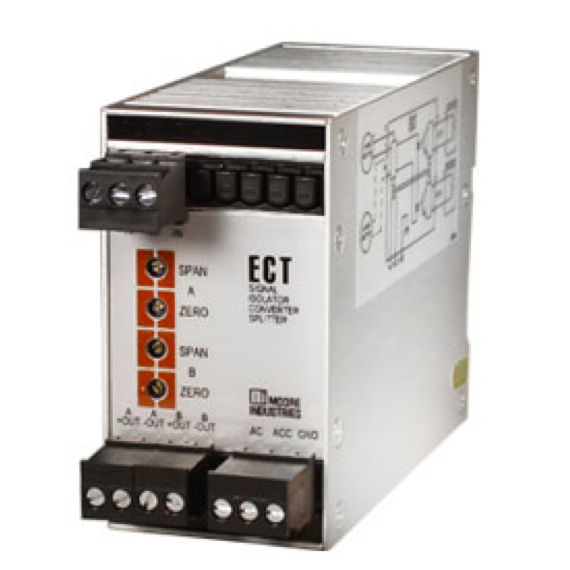

Moore Industries ECT Signal Isolator, Converter and Splitter

Specs

Input
4-20mA
Output
2X4-20mA
Power
24DC
Options
-TX
Input Description
4-20mA
Output Description
2X4-20mA
Power Description
4-Wire, 24VDC Line/Mains Powered
Options Description
24V transmitter excitation for powering a 2-wire transmitter
Housing Description
Universal DIN-style housing, 32mm G-type and 35mm Top Hat
HART Signal Pass-through Capability
No
For use in Safety Instrumented Systems (SIS)
No
Number of Inputs
1
Input Type
4-20mA
Number of Outputs
1, 2
Device Power
4-Wire, 24VDC Line/Mains Powered
Integral Display
No
Alarm/Relay Output
No
Configuration/Setup
Fixed Input/Output
Enhanced RFI/EMI Immunity
No
Housing/Enclosure
DIN Rail Enclosure
2" Pipe Mount Bracket
No
Hazardous Area Certifications
UL Approved, Non-Incendive/Div. 2, Zone 2
RoHS Compliant
Yes

Features

  • Current and voltage inputs. Available models handle Current and Voltage Signals.
  • 2-wire (loop) and 4-wire (line/mains) powered. Versatile choices allow you to match the ECT to the type of AC or DC power available at each location.
  • Narrow 15mm housing. New thinner width lets you get more isolators in the same small space, without sacrificing RFI/EMI protection and -40 to 85C operating temperature range you need for more extreme locations.
  • Superior signal isolation (up to 1500Vrms). Industrial-strength protection stops ground loops, motor noise, and other electrical interferences from affecting process signals.
  • RFI/EMI protection. The ECT provides an effective barrier against the unpredictable, harmful effects of radio frequency and electromagnetic interference. When ordered with the -RF option, the ECT delivers enhanced protection for especially noisy environments.
