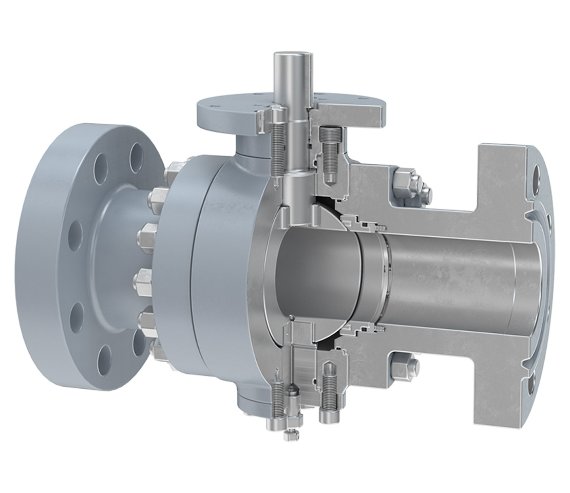

The GROVE B4 valve is constructed of forged components bolted together in a side-entry design.

Manufactured in a wide range of diameters and pressure classes.  Grove B4 side-entry ball valves are specified for transmission pipelines, pumping, compression and reinjection units, offshore platforms, onshore terminals, pig traps, measuring stations, and surge-relief skids.  Split-body construction enables the use of forged materials in various grades of carbon steel, stainless steel, and high alloys to comply with the most severe service conditions.


  • Trunnion-mounted design
  • Double-barrier stem seals
  • Stem separate from the ball
  • Antiblowout stem design
  • Stem emergency grease fitting
  • Low-friction, metal-backed, self-lubricating PTFE sleeve bearings and thrust washers
  • Plastic polymer insert for seat sealing
  • Self-relieving seats
  • Double block-and-bleed capability
  • Factory-positioned external stops
  • Electroless nickel coating on pressure-controlling parts and stem
