SAUNDERS P345 Polymer Pneumatic Actuator, designed to reduce operating pressure requirements to 4½ bar, which in turn, can reduce your carbon footprint and energy cost by 11%.
The lightweight piston type pneumatic actuator has been developed to deliver sustainable performance for Sterile BioPharm Applications.

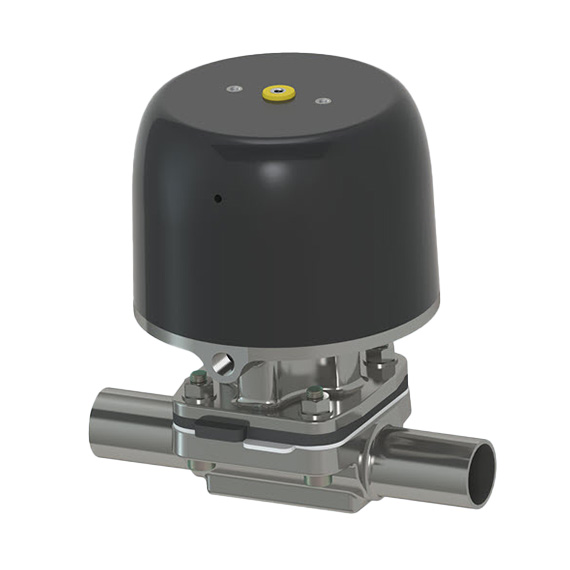

SAUNDERS® P345 Pneumatic Actuator

Specs

Size Range
DN8 (0.25”) – DN50 (2.00”)
Modes of Operation
Spring-to-Close
Material of Construction
Polymer Cover: Polyamide, Bonnet: Stainless Steel
Temperature
Max: 100°C (212°F), Min: -10°C (14°F)

Features

  • 4.5 Bar Operating Pressure - Reduced TCO through reduction in air consumption
  • Industry Leading Closure Performance - 8 bar (PTFE Diaphragm) & 10 bar (Rubber Diaphragm) @100% DeltaP
  • Lightweight Construction - 25% improvement in weight, vs typical Stainless Steel Actuator
  • Eco Friendly - Can deliver up to 11% reduction in Carbon Footprint and Energy Consumption through the reduced operating pressure requirements.
