The FLEXIM FLUXUS F721 is a technological breakthrough in the ultrasonic clamp-on volume and mass flow measurement of liquids.
With its state-of-the-art hardware design and powerful digital signal processing it surpasses any other non-intrusive ultrasonic flow meter in terms of accuracy, reliability and versatility.
Highly sophisticated signal filters, faster than ever processing capacities and advanced measurement algorithms make the FLUXUS F721 liquid flow meter the standard setting measuring solution for any industrial application–even for the most challenging ones. The meter adapts itself automatically to the respective measurement conditions and compensates for flow profile disturbances such as beam dispersal and structure-borne noise, allowing for even more precise and reliable measurements. Extreme fast measurement cycles enable precise real time monitoring of highly dynamic processes.

Standard Setting Clamp-on Flow Measurement

Play Video

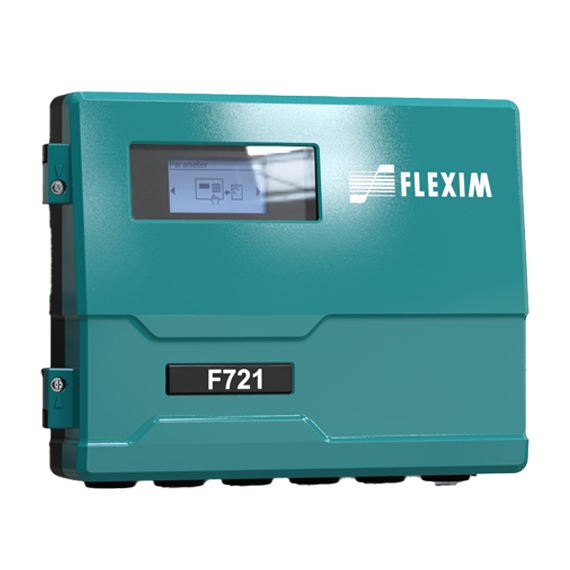

FLUXUS® F721 Ultrasonic Flow Meter for Liquids


Measurement uncertainty of the measuring system (volumetric flow rate)
±0.3% of reading ±0.005 m/s
Measurement uncertainty at the measuring point (volumetric flow rate)
±1% of reading ±0.005 m/s
0.15% of reading ±0.005 m/s
Flow velocity range
0.01 - 25 m/s
Ex zone transmitter
ATEX/IECEx Zone 2, FM Class I /Div 2
Power supply
100-230VAC, 24DC, 12DC
Available transducers
Shear Wave
For Ex zones
ATEX/IECEx Zone 1/Zone 2, FM Class I - Div2
For pipe sizes range
6mm - 6500mm
For temperature range
-40°C - +240°C / WI: -200°C - +600°C
4-20mA active/passive, 4-20mA HART active/passive, pulse/frequency/binary
Pt100/Pt1000, 4-20mA active/passive, Binary input
Digital communication
Modbus RTU/TCP, BACnet MSTP/IP, M-Bus, Profibus PA, Foundation Fieldbus
Advanced Meter Verification (AMV)


  • No process interruption for installation, no pipe modification necessary - maintenance-free (no need for frequent work in hazardous areas)
  • Certified for operation within hazardous areas (ATEX / IECEx Zone 2 and FMc Class I, Div. 2 certified)
  • Fast measuring dynamics (output of measurement data every 10ms), capturing highly pulsating flows
  • Reliable measurements of slurries or liquids with gaseous entrainments (>10% of total volume)
  • High operational safety with no risk of leaks
  • Independent of pipe material, diameter, wall thickness and internal pressure and temperature
  • Accurate and repeatable measurement readings - even at extremely low flow rates (high turndown ratio)
  • Highly cost efficient in comparison to wetted instrumentation
  • Every measurement system is pre-calibrated in-house (traceable to national standards) and delivered with a calibration certificate
  • Matched transducers, integrated temperature compensation (according to ANSI/ASME MFC-5.1-2011 regulations) and advanced digital signal processing guarantee a high zero point stability and drift free measurement readings
  • Permanent coupling with unique couplant pads, FlexSpring secured mounting fixtures guarantee durable contact pressure also on heavily vibrating pipes
  • Bidirectional communication as well as remote set-up and diagnostic capabilities
  • Enabling complete monitoring of processes as well as supervision and control of critical operations
  • Advanced Meter Verification
